The Basic Mount is a simple two-piece bracket system that attaches directly to the OSSM actuator body. It provides a straightforward mounting solution with minimal printed parts.Documentation Index
Fetch the complete documentation index at: https://docs.researchanddesire.com/llms.txt
Use this file to discover all available pages before exploring further.
Overview

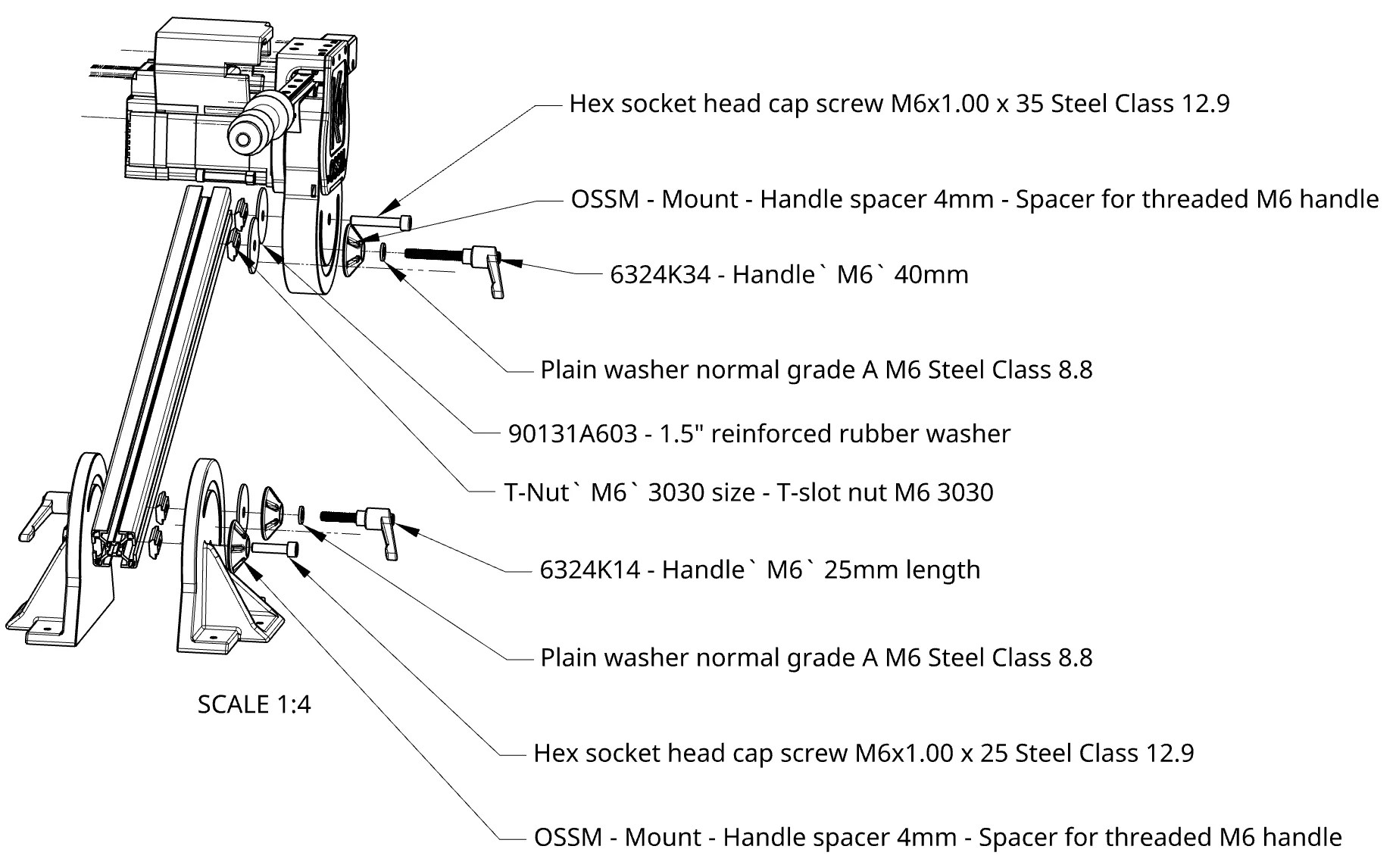

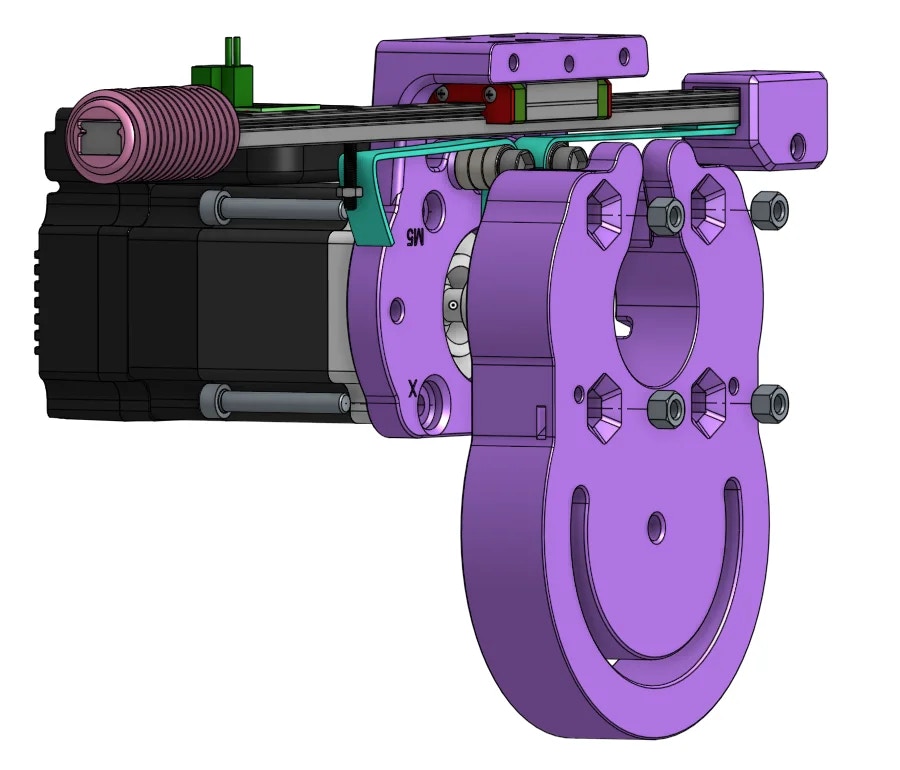

The Basic Mount consists of two mirrored side brackets that clamp onto the OSSM body, plus an optional spacer for use with extrusion-based stands.
CAD Files
OnShape Document

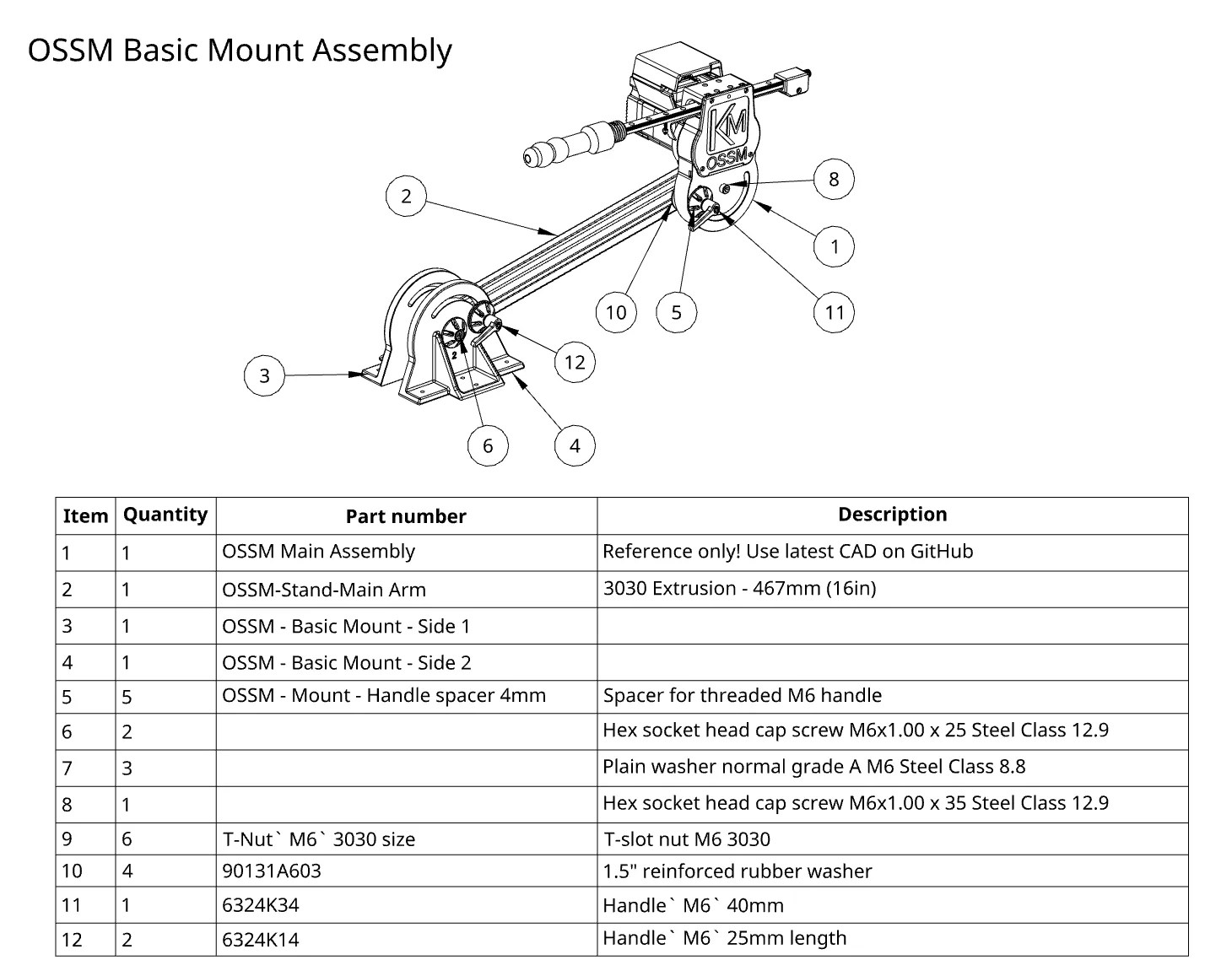

View the latest exploded views and Bill of Materials in OnShape
Required Printed Parts
| Part | Quantity |
|---|---|
| Basic Mount - Side 1 | 1 |
| Basic Mount - Side 2 | 1 |
| Extrusion Mount Spacer (optional) | As needed |
Print Settings
Print all parts without supports using OSSM standard settings.
| Setting | Value |
|---|---|
| Walls | 4-6 |
| Infill | 15-20% gyroid or crosshatch |
| Supports | None |
| Layer height | 0.2mm |
Download All Files
STL Files
Download STL files for printing
Source Files
STEP and Fusion 360 files for modification
