PitClamp Mini

Quick-release adjustable mount for 57AIM, 42AIM, and iHSV57 motors.

PCB Enclosure

Protective housing for the OSSM control board with extrusion mounting.

PitClamp Mini v1.1

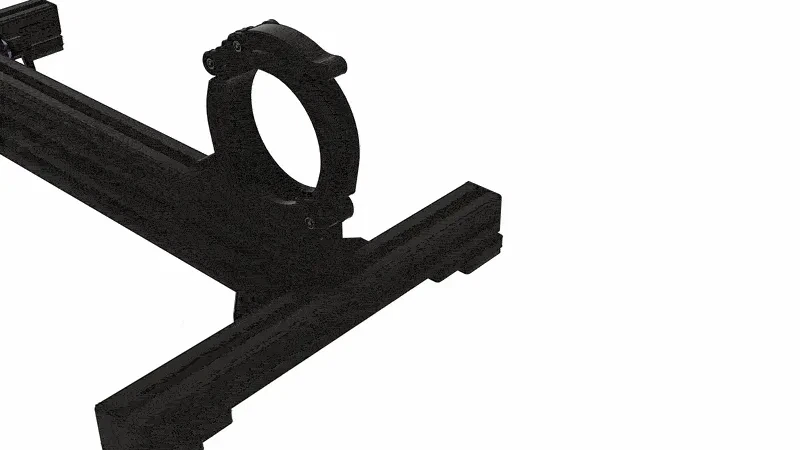

![Exploded view of PitClamp Mini Base assembly](./_images/Exploded - PitClamp Mini Base.webp)

PitClamp Mini exploded view showing all components

Developed by: armpit A 3D-printed modular quick-release mount ecosystem for NEMA23 motors, featuring:

4-degree precision quick-adjustable rotation
Motor can be quickly removed for storage or use in another base
Stress tested to 50 ft-lb without grip compromise (PLA, 6 walls, 10% infill)

Supported Motors

57AIM (30/15/10)	42AIM (30/15/10)	iHSV57 (180w)
![PitClamp Mini with 57AIM30 motor - back right view](./_images/PitClamp Mini - 57AIM30 - Back Right.webp)	![PitClamp Mini with 42AIM30 motor - back right view](./_images/PitClamp Mini - 42AIM30 - Back Right.webp)	![PitClamp Mini with iHSV57 motor - back right view](./_images/PitClamp Mini - iHSV57 - Back Right.webp)
![PitClamp Mini with 57AIM30 motor - front left view](./_images/PitClamp Mini - 57AIM30 - Front Left.webp)	![PitClamp Mini with 42AIM30 motor - front left view](./_images/PitClamp Mini - 42AIM30 - Front Left.webp)	![PitClamp Mini with iHSV57 motor - front left view](./_images/PitClamp Mini - iHSV57 - Front Left.webp)

The iHSV57 ring prints as one piece but snaps into two halves after removal from the printer. Clasp each half around the motor to assemble.

iHSV57 motors smaller than 180w require modifications to the ring design.

Print Settings

Setting	Value
Walls	6
Infill type	Cross Hatch or Gyroid
Infill percentage	10%
Supports	Tree Supports, 5° threshold angle
Seam	Nearest (or your preference)
Filament estimate	~150g
Recommended filament	PLA+

Print all parts in the default file orientation. Printing base components in other orientations causes structural weakness.

Required Printed Parts

(Qty 1) Mounting Ring - PitClamp Mini - 57AIM V1.1
(Qty 1) Base - PitClamp Mini - Dogbone Bolts
(Qty 1) Base - PitClamp Mini - Dogbone Nuts
(Qty 1) Base - PitClamp Mini - Handle
(Qty 1) Base - PitClamp Mini - Lower V1.1
(Qty 1) Base - PitClamp Mini - Upper V1.1

If your printer is well-calibrated with optimal layer adhesion, use the print-in-place Upper+Handle variant from the Non-Standard folder for reduced hardware requirements.

All OSSM print files are also available on MakerWorld.

Additional Resources

Bill of Materials

Complete hardware list for your build.

Assembly Guides

Video tutorials for assembly.

Updates

Changelog and version history.

Full Documentation

Detailed features and specifications.

Animated exploded view of PitClamp Mini assembly — PitClamp Mini assembly animation

PCB Enclosure

Protective enclosure for the OSSM control board with direct mounting to 3030 extrusion.

Print Settings

Setting	Value
Walls	4
Infill type	Cross Hatch or Gyroid
Infill percentage	10%
Supports	None
Recommended filament	PLA+

Required Printed Parts

(Qty 1) PCB - Box
(Qty 1) PCB - Lid

Bill of Materials

Quantity	Part
6	M3x8 Socket Cap Head Bolt (longer acceptable)
2	M6x12 Socket Cap Head Bolt
2	M6 T-Nut
